Nintendo Hacking 2016

@derrekr6, @naehrwert, @nedwilliamson

State of the Wii U

We wanted more access

PPC Kernel

ioctlvhax

Or why indirections are hard

Relevant part of IPCKDriver_SubmitRequest syscall

struct ioctlv_ent {
    u32 phys;
    u32 size;
    u32 virt;
};

struct ios_packet {
    /* ... */
    union {
        /* ... */
        struct { struct ioctlv_ent *ent; } ioctlv;
    } virt;
}

struct ios_packet pkt;
copy_in(&pkt, ...);
/* ... */
for (idx = 0; idx < pkt.args.ioctlv.num_in; idx++) {
    struct ioctlv_ent *ent = &pkt.virt.ioctlv.ent[idx];
    ent->phys = KiEffectiveToPhysical(..., ent->virt); //Uhhhhhm?!
    if (!IPCKDriver_CheckAddress(..., ent->phys, ent->size))
        return ERR;
}


Looks hard to exploit

One byte to rule them all

Relevant part of PPC kernel

; PPC kernel version 11464

0xFFF0F700 cmpwi r31, 0
0xFFF0F704 mtlr r28
0xFFF0F708 blr ; User controlled branch.
; ...
0xFFF0F7F0 KeLoaderCall:
; ...
0xFFEAA0E0 syscall_table:
; ...
0xFFEAA21C .long KeLoaderCall ; =0xFFF0F7F0, syscall 0x4F


Relevant part of exploit

void kmode_func() { /* Just kernel mode things. */ }

/* Overwrite last byte of syscall 0x4F handler address with 0x00. */
ioctlv(..., (struct ioctlv_ent *)(0xFFEAA21C+3));

/* Execute syscall 0x4F with r28 set to kmode_func. */
asm ("mr 28, %0\n"
     "li 0, 0x4F00\n"
     "sc\n" : : "r"((u32)kmode_func));


PPC Kernel Mode Arbitrary Code Execution ⚡

Quite nice but we can and need to go deeper

IOSU architecture

mqhax

Integer overflow? never heard of...

int IOS_CreateMessageQueue(u32 *buf, int num_ents) {
    if (!check_addr_arm(buf, 4 * num_ents, ...))
	    return ERR;
    /* ... */
    new_queue->buf = buf;
    new_queue->max_ents = num_ents;
    /* ... */
    return new_queue->id;
}


int IOS_SendMessage(int id, u32 msg, u32 flags) {
    /* ... */
    msg_queue->buf[msg_queue->pos++] = msg;
    /* ... */
}


IOSU ELF Section flags

Actually these permissions are lies.

Exploit strategy

Relevant part of memory and IOSU kernel

0x0811FFF8 ; valid address
0x0811FFFC ; valid address
; Start of IOSU kernel .text section (RWX).
0x08120000 syscall_4F:
0x08120000     STMFD SP!, {R4,R5,LR}
; ...


Relevant part of exploit (ROP in reality)

/* Create hax message queue and patch syscall 0x4F. */
int mq = IOS_CreateMessageQueue(0x08120000 - 8, 0x40000002);
IOS_SendMessage(mq, 0xDEADC0DE, 1);
IOS_SendMessage(mq, 0xDEADC0DE, 1);
IOS_SendMessage(mq, 0xE12FFF13 /* BX R3 */, 1);

/* Use syscall 0x4F for kernel mode shenanigans. */


Integer overflow: 4 * 0x40000002 = 0x100000008

IOSU Kernel Mode Arbitrary Code Execution ⚡

Lets us also dump the console's OTP and grab all the keys (except for boot1)

Gaining persistence

Persistent code execution on coldboot with full control ⚡

NAND Tracer

						State: READ    BANK 1 (cmd 0x00 0x30): Addr 0x1348C000 (row 0x26918)

State: READ    BANK 1 (cmd 0x00 0x30): Addr 0x1348C800 (row 0x26919)

State: READ    BANK 1 (cmd 0x00 0x30): Addr 0x1348D000 (row 0x2691A)


boot1 parses an .xml file!

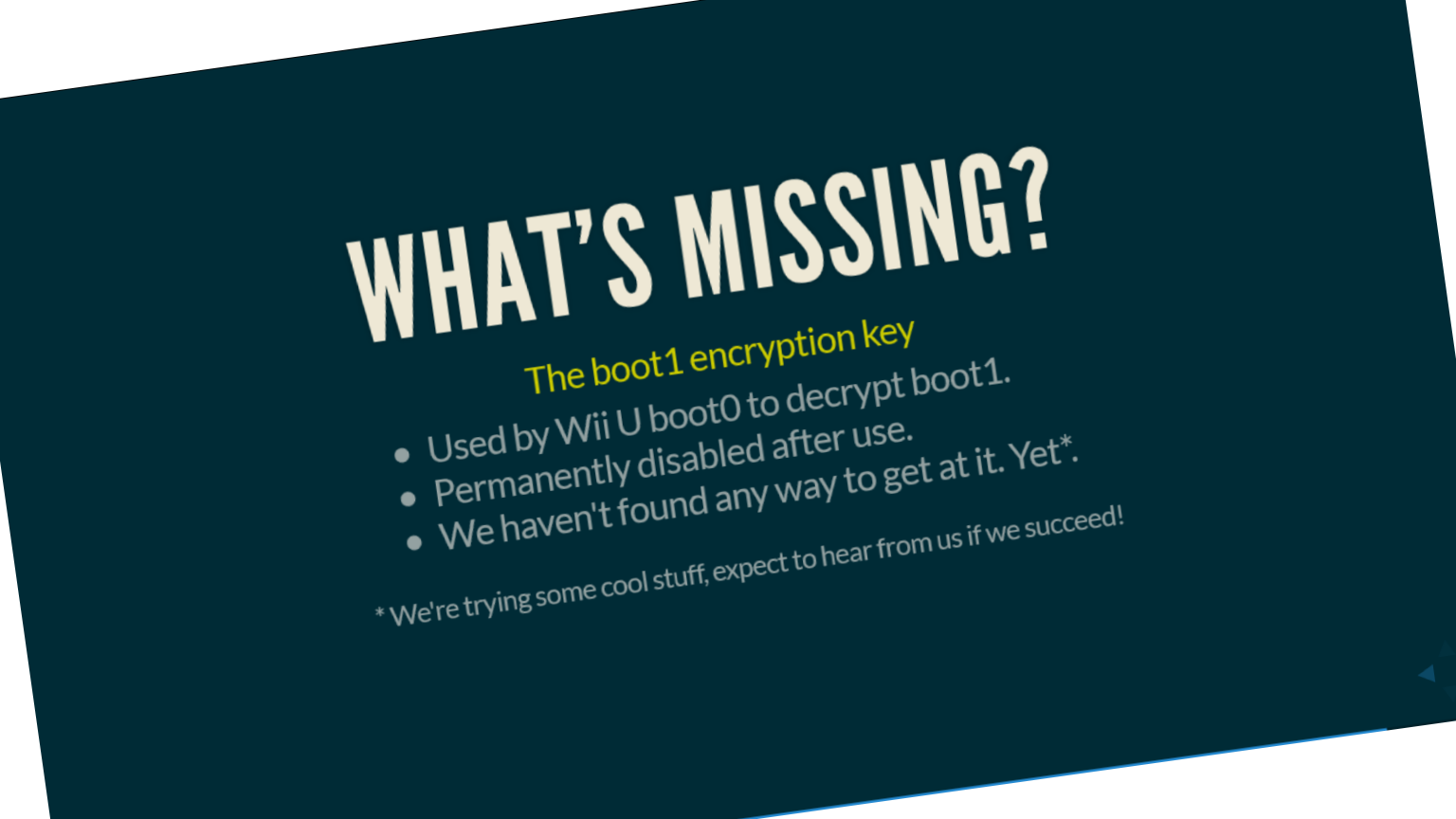

Boot0

• Can be reenabled and dumped in vWii
• Locks out boot1 key really early
• However, it is kept in memory until it's done

We need to exploit boot0 to get the key.

...Surprisingly, boot0 is pretty safe.

How can you exploit something that has no bugs?

We have to introduce our own bugs.

Fault Injection

• Introduce an error in a device
• Clock/voltage/reset glitching, EM, ...
• Cause: mutated instructions, corrupted registers

The weak spot

• boot0 copies itself to RAM @0xD410000 and calls main()
• Locks OTP slots, initializes Flash Controller etc

The weak spot

• boot0 copies itself to RAM @0xD410000 and calls main()
• Locks OTP slots, initializes Flash Controller etc
• Reads boot1 header to 0xD400000
• Checks boot1 size field (max size: 0xF000)

The weak spot

• boot0 copies itself to RAM @0xD410000 and calls main()
• Locks OTP slots, initializes Flash Controller etc
• Reads boot1 header to 0xD400000
• Checks boot1 size field (max size: 0xF000)
• Reads whole boot1 using this size to 0xD400000
• Verifies boot1 RSA signature and its hash
• Decrypts boot1 code
• Clears key and jumps to 0xD400100

The weak spot

• boot0 copies itself to RAM @0xD410000 and calls main()
• Locks OTP slots, initializes Flash Controller etc
• Reads boot1 header to 0xD400000
• Checks boot1 size field (max size: 0xF000)
• Reads whole boot1 using this size to 0xD400000
• Verifies boot1 RSA signature and its hash
• Decrypts boot1 code
• Clears key and jumps to 0xD400100

The weak spot

• boot0 copies itself to RAM @0xD410000 and calls main()
• Locks OTP slots, initializes Flash Controller etc
• Reads boot1 header to 0xD400000
• Glitch! (size check bypassed)

The weak spot

• boot0 copies itself to RAM @0xD410000 and calls main()
• Locks OTP slots, initializes Flash Controller etc
• Reads boot1 header to 0xD400000
• Glitch! (size check bypassed)
• Reads whole boot1 using this size to 0xD400000
• boot0 jumps to our code

Boot0 Code Exec

• We can dump boot1 key from RAM
• We didn't even need an exploit
• It's surprisingly stable

Boot1

Understands the WiiU's filesystem.

XML parsing code seems safe :-(

Maybe we found a bug...

... but we haven't really tried to exploit it.

It's just the WiiU after all.

Last year...

• we broke userland, kernel and the security processor
• we broke the secret HW keyscrambler

Since then...

• Nintendo released 8 system updates!

Main changes for version 11.2.0-35U: "Further improvements to overall system stability and other minor adjustments have been made to enhance the user experience"

• Nintendo started a Bug Bounty Program

Many bugs patched. However:

• This is an excellent environment to find new ones.
• RE and exploitation cost is reduced dramatically.

Userspace

• The situation is already quite good here.
• Several good, reliable game entrypoints.
• Multiple browser exploits released.

Why look further?

• Game cart demand leads to price gouging ($52 for CN).
• Browser checks for latest system version.

Soundhax

• Parses multiple formats, .mp3, .mp4, playlist, ...
• All parsing, decoding is custom.
• Found several low severity issues before one critical one.

MPEG header parsing

#define MAX_NAME_LENGTH 256

MPEG::MPEG() {
  char *song_name = malloc(MAX_NAME_LENGTH);
}

MPEG::parse_file(...) {
  ...
  MPEGParser::load_song_name(song_name, ...);
  // parse tags
  ...
}

MPEG::load_song_name(dest_buffer, ...) {
  ...
  if (ascii) {
    safe_strncpy(dest_buffer, file->name_tag, MAX_NAME_LENGTH);
  } else if (unicode) { // starts with 0xFEFF or 0xFFFE (BOM)
    memcpy(dest_buffer, file->name_tag, file->name_tag_size);
  }
  ...
}


Starting the Exploit

Starting the Exploit

Starting the Exploit

Stack Pivot Time!

• Only one pivot gadget in the binary.
• Can't use readily-available wide thumb pivots.
• ARM pivot requires unsatisfiable conditions.

CTF Workaround :-)

• Overwrite heap free list head with stack address.
• The next malloc will return a stack address.
• Constraint 1: Needs fake heap chunk on stack.
• Constraint 2: Freed chunk needs to be undersized.

It works.

• Our next tag is memcpy'd to the stack.
• On that tag, put a ROP chain and shellcode.
• memcpy shellcode to heap then gspwn.

Free Offline Entrypoint ⚡

Kernel

• Last year: lots of attacks on svcControlMemory.
• Little attention on sync primitives, use after free.

Design Flaw

• Refcounting assumes only user accesses KObjects.
• Internal KObject usage never seems to incref.
• Found 3 UAFs along these lines immediately.
• For those bug hunting at home, look here :)

KTimer Object

• Kernel can create timers on behalf of the user.
• {svcCreateTimer, svcSetTimer, svcCloseHandle}
• 3 modes: one-shot, sticky, pulse

Kernel Event Handler Thread

void KTimer::pulse() {
  mutex_lock(&ktimer_lock);
  // reschedule timer
  mutex_unlock(&ktimer_lock);
  KSynchronizationObject::Signal(reset_type == PULSE_EVENT);
}

void KSynchronizationObject::Signal(is_pulse) {
  mutex_lock(&sched_lock);
  // signal all waiting objects..
  if (is_pulse) {
    // virtual function call, just does `is_signaled = false;`
    reset_timer_state();
  }
  mutex_unlock(&sched_lock);
}

Nothing prevents an asynchronous CloseHandle!

Fasthax

void try_race() {
	svcCreateTimer(&timer, PULSE_EVENT);
	// initial_pulse, pulse_period
	svcSetTimer(timer, 8000, 0x1000000000);
	svcCloseHandle(timer);
}


• Losing the race is safe.
• Works within 1000 rounds/1 second.

Let's exploit this.

ROM:FFF25AC8                 LDR             R0, [R7]
ROM:FFF25ACC                 LDR             R1, [R0,#0x34]
ROM:FFF25AD0                 MOV             R0, R7
ROM:FFF25AD4                 BLX             R1      ; controlled


• We get a virtual call to reset the timer state.
• R7 points to our freed object.
• This is essentially: (*r7+0x34)(r7)

Exploiting UAF

Exploiting UAF

Exploiting UAF

Issue 1: UAF in a Kernel Thread

• We can't immediately return to userspace.
• We have to return to a function.
• Sounds easy. Just return to kernel function.

Issue 2: Sign Checks

• Kernel code mapping is 0xFFF00000-0xFFF2E000.
• We can't set negative timer values.

Another Trick

• SetTimer adds current tick to initial time.
• Overflow not checked when installing timer.
• Timer schedule values are signed...
• ...so we can overflow and schedule into the past.

Another Trick

svcSetTimer(timer,
0x8000000000000000 - tick_to_ns(svcGetSystemTick()), // initial
(dest_function & 0x7FFFFFFF) << 32) // period

Another Trick

svcSetTimer(timer,
0x8000000000000000 - tick_to_ns(svcGetSystemTick()), // initial
(dest_function & 0x7FFFFFFF) << 32) // period

Another Trick

svcSetTimer(timer,
0x8000000000000000 - tick_to_ns(svcGetSystemTick()), // initial
(dest_function & 0x7FFFFFFF) << 32) // period

Another Trick

svcSetTimer(timer,
0x8000000000000000 - tick_to_ns(svcGetSystemTick()), // initial
(dest_function & 0x7FFFFFFF) << 32) // period

Issue 3: No Easy Kernel Function

Time for Trickery ( ͡° ͜ʖ ͡°)

Write an instruction to the next pointer.

ROM:FFF1B65C    LDR  R1, [R1,#0xC] ; <- r1 points here
ROM:FFF1B660    STR  R1, [R0] ; *r0 = *(r1+0xC)
ROM:FFF1B664    BX   LR ; return cleanly
ROM:FFF1B668    ADD  R1, R1, #0xC  ; <- *(r1 + 0xC) == 0xE281100C


Done

ARM11 Kernel Code Exec ⚡

The 3DS Bootroms

• One for each processor
• Load the firmware image
• Boot9 (ARM9 BootROM) handles main boot
• Set secret keys
• Locked out prior to firmware launch
• Print nice error screens

Bootrom Protection

• Disabled partially by writing to CFG_SYSPROT9 and CFG_SYSPROT11
• One shot
• One half (32 KB) remains visible
• Main boot code is hidden
reset_vector:
b 0xFFFF8000

Maybe we can find a bug.

Unprot_boot9.bin

Contains no keys.

Mainly (MMC) driver code.

Also talks to AES engine, SPI Flash, ...

Includes the ARM Exception Vector Table.

ARM Exception Vectors

Exception Vectors

Hardcoded in the bootrom

Problem: exception handler routines should not be static.

→ BootROM redirects exceptions to jumptable in ARM9 RAM.

What about cold boot?

This is interesting...

Not really a bug.

Let's assume we could somehow trigger an early exception.

Probably would just crash.

A Cute HW Flaw

Some RAM is not cleared on reboot.

This includes ARM9 RAM.

Idea: Write payload to RAM and reboot...

We are just an exception away from BootROM code execution!

Exceptions

How do we trigger an exception?

Fault injection ahoy!

Vector-Glitch Hack

1. Setup vectors in RAM

2. Trigger Reboot

3. Apply Glitching Magic

4. Reset again

5. Dump BootROM from memory

Not very stable ...

BootROM dumped!

... but works for me.™

Prologue

In Februray 2014 a FCC documented became public.

Nintendo has changed the CPU of the Nintendo 2DS.

"The difference between FTR-001 and FTR-001(-01) is from CPU with a different security function of the initial program loader that is installed in each model"

There must be a huge bug in the BootROM.

Boot9

Main boot method: NAND (MMC)

Alternative: SPI Flash

Only boots encrypted, signed firmware images.

Different RSA keys for NAND and non-NAND boot methods.

Two seperate sets of keys for retail/dev mode.

Boot Walkthrough

• Selects boot device
• Loads FIRM header and RSA signature
• Hashes the header and verifies the sig
• Loads and verifies FIRM sections

RSA signatures

• They are using PKCS
• RSA-2048 (0x100 bytes)
• Embedded ASN.1 Encoded SHA-256 hash
• A padding is required
• Padding is deterministic (0xFF bytes)

They decided to write their own signature parser...

RSA The Nintendo Way (Again)

• Padding parser code is messed up
• Flag-Byte tells if padding should be checked.
• Weak Bounds checking
• ASN.1 parser is very simplified
• It's parsing length fields
• There's no Bounds checking
• current offset + length = beginning of the hash
• Final pointer is for comparison against calculated hash
• It only checks a few bytes in the signature
• We can bruteforce a perfect signature...
• ... where the final pointer matches the pointer of the calculated hash

sighax

• We can sign our own firmwares.
• ~62 millions vulnerable devices.
• Nintendo can't fix it.

We haven't dumped the ARM11 BootROM yet.

We could do the Vector-Glitch Hack again...

... but let's try something else.

Dumping Boot11

• Unprotected Boot11 code references ARM11 RAM

Can we overwrite any Boot11 data?

• Boot9 checks firmware sections
• All Boot9 data regions are blacklisted.




They forgot to blacklist the Boot11 data region!

Boot11 dumped!

Well, that was easy...

~ Summer 2015

Questions?

@derrekr6, @naehrwert, @nedwilliamson
3dbrew.org
wiiubrew.org
